Description

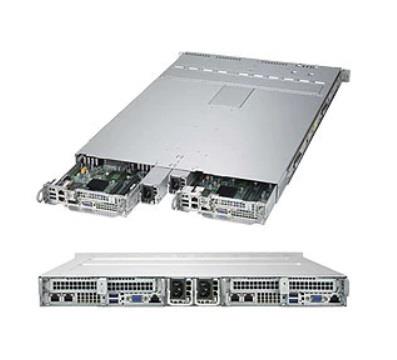

SERVER SYSTEM 1U SAS/SYS-1029TP-DC1R SUPERMICRO
Short Description
https://ecom.elkogroup.com/Catalog/Product/1257054
Downloadable Files
SERVER SYSTEM 1U SAS/SYS-1029TP-DC1R SUPERMICRO

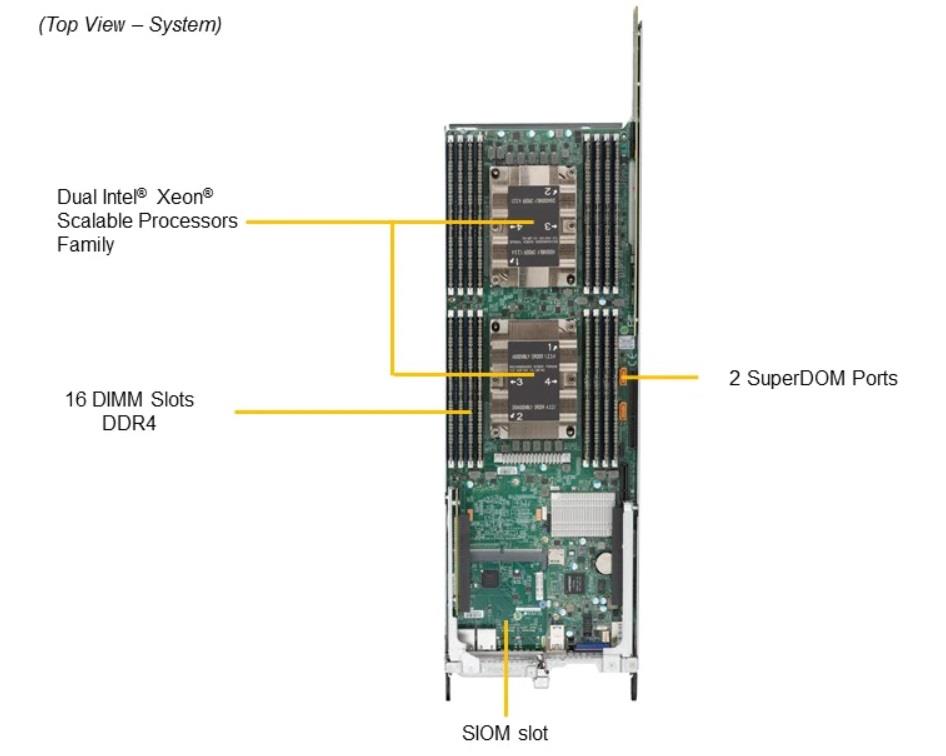

| Description: Key Features - Mission-critical applications<br/> - High Availability Storage<br/> Appliance Platform<br/> Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:1. Dual socket P (LGA 3647) supports<br/> Intel® Xeon® Scalable Processors,<br/> Dual UPI up to 10.4GT/s2. Up to 2TB ECC 3DS LRDIMM, up to<br/> DDR4-2666MHz; 16 DIMM slots3. 2 PCI-E 3.0 x16 slots4. Flexible Networking support via SIOM;<br/> Dedicated IPMI 2.0 LAN5. 4 Hot-swap 2.5" SAS3 drive bays6. Broadcom 3108 SAS3 controller;<br/> RAID 0, 1, 5, 6, 10, 50, 60 with<br/> SuperCap option7. 2 SuperDOM onboard8. Up to 1000W Redundant Power Supplies<br/> Titanium Level (96%) |
| Vendor Homepage: www.supermicro.com/products/system/1u/1029/SYS-1029TP-DC1R.cfm |
| Category Code: SYS |
| Units per Shipping Box: 1 |
| Unit Calculated Volume: 0.149 |
| Product Net Weight: 19 |
| Unit Calculated Weight: 21.9 |
Warranty:
12 months
Specifications
Description:
Key Features - Mission-critical applications<br/>
- High Availability Storage<br/>
Appliance Platform<br/>
Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:1. Dual socket P (LGA 3647) supports<br/>
Intel® Xeon® Scalable Processors,<br/>
Dual UPI up to 10.4GT/s2. Up to 2TB ECC 3DS LRDIMM, up to<br/>
DDR4-2666MHz; 16 DIMM slots3. 2 PCI-E 3.0 x16 slots4. Flexible Networking support via SIOM;<br/>
Dedicated IPMI 2.0 LAN5. 4 Hot-swap 2.5" SAS3 drive bays6. Broadcom 3108 SAS3 controller;<br/>
RAID 0, 1, 5, 6, 10, 50, 60 with<br/>
SuperCap option7. 2 SuperDOM onboard8. Up to 1000W Redundant Power Supplies<br/>
Titanium Level (96%)
Vendor Homepage:
www.supermicro.com/products/system/1u/1029/SYS-1029TP-DC1R.cfm
Category Code:
SYS
Units per Shipping Box:
1
Unit Calculated Volume:
0.149
Product Net Weight:
19
Unit Calculated Weight:
21.9
