Description
Channels 8 | Drives/bays 1 | Desktop/pedestal | Rack | CPU Embedded Linux | SATA | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 12 VDC, 1.5 A | Power consumption 10 Watts | Dim. 204.6 × 206.4 × 45.6 mm | Temp. range –10 °C to +55 °C
Short Description
https://ecom.elkogroup.com/Catalog/Product/1388837
Downloadable Files

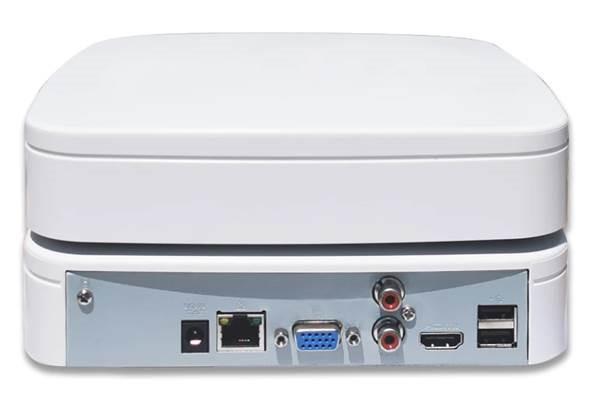

NET VIDEO RECORDER 8CH/NVR2108-S3 DAHUA
| Description: 8 IP channel max, up to 12MP resolution<br/> 80Mbps record rate<br/> VGA/HDMI up to 1-channel 12MP @30 fps; 6-channel 1080p @ 30 fps<br/> 1 SATA port, up to 16 TB 3.5” HDD, 10/100M LAN<br/> No front panel control, no Alarm I/O, 2 USB<br/> Smart 1U case (white), mouse included<br/> ONVIF (profile T/S/G); CGI; SDK<br/> Connected to the third-party network cameras<br/> 4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus<br/> Free IP monitoring software available<br/> |
| Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-S3-Series/1HDD/NVR2108-S3 |
| RJ45: 1 |
| Shipping Box Depth: 36.5 |
| Shipping Box Height: 9.5 |
| Shipping Box Weight: 0.99 |
| Shipping Box Width: 26.5 |
| Unit Box Width: 0.265 |
| Unit Box Length: 0.365 |
| Unit Box Height: 0.095 |
| Full Description Line: Channels 8|Drives/bays 1|Desktop/pedestal|Rack|CPU Embedded Linux|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Power consumption 10 Watts|Dim. 204.6 × 206.4 × 45.6 mm|Temp. range –10 °C to +55 °C |
| Category Code: NVR |
| Model: DHI-NVR2108-S3 |
| Operating temperature range: –10 °C to +55 °C |
| Dimensions: 204.6 × 206.4 × 45.6 mm |
| Units per Shipping Box: 1 |
| Unit Calculated Volume: 0.009189 |
| Product Net Weight: 0.42 |
| Unit Calculated Weight: 0.99 |
| USB 2.0: 2 |
| Power consumption: 10 |
| Power supply requirements: 12 VDC, 1.5 A |
| Desktop/pedestal: Yes |
| SATA: Yes |
| CPU: Embedded Linux |
| Number of Channels: 8 |
| 15pin D-sub: 1 |
| HDMI: 1 |
| Rack: Yes |
| Audio-In: 1 |
| Audio-Out: 1 |
| Number of drives/bays: 1 |
Warranty:
36 months
Specifications
Description:
8 IP channel max, up to 12MP resolution<br/>
80Mbps record rate<br/>
VGA/HDMI up to 1-channel 12MP @30 fps; 6-channel 1080p @ 30 fps<br/>
1 SATA port, up to 16 TB 3.5” HDD, 10/100M LAN<br/>
No front panel control, no Alarm I/O, 2 USB<br/>
Smart 1U case (white), mouse included<br/>
ONVIF (profile T/S/G); CGI; SDK<br/>
Connected to the third-party network cameras<br/>
4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus<br/>
Free IP monitoring software available<br/>
Vendor Homepage:
www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-S3-Series/1HDD/NVR2108-S3
RJ45:
1
Shipping Box Depth:
36.5
Shipping Box Height:
9.5
Shipping Box Weight:
0.99
Shipping Box Width:
26.5
Unit Box Width:
0.265
Unit Box Length:
0.365
Unit Box Height:
0.095
Full Description Line:
Channels 8|Drives/bays 1|Desktop/pedestal|Rack|CPU Embedded Linux|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Power consumption 10 Watts|Dim. 204.6 × 206.4 × 45.6 mm|Temp. range –10 °C to +55 °C
Category Code:
NVR
Model:
DHI-NVR2108-S3
Operating temperature range:
–10 °C to +55 °C
Dimensions:
204.6 × 206.4 × 45.6 mm
Units per Shipping Box:
1
Unit Calculated Volume:
0.009189
Product Net Weight:
0.42
Unit Calculated Weight:
0.99
USB 2.0:
2
Power consumption:
10
Power supply requirements:
12 VDC, 1.5 A
Desktop/pedestal:
Yes
SATA:
Yes
CPU:
Embedded Linux
Number of Channels:
8
15pin D-sub:
1
HDMI:
1
Rack:
Yes
Audio-In:
1
Audio-Out:
1
Number of drives/bays:
1
