Description
Type PTZ | Sensor size 1/2.8” Sony Exmor CMOS | Focal Length 5.1mm - 61.2mm | Min. Illumination 0.05 Lux | Effective pixels 1944(H) x 1092(V) | 1xAudio-In | 1xBNC | 1xRS-485 | 2xAlarm In | 1xAlarm Out | Power supply requirements AC24V/1.5A(±10%), 10W max; 24 VAC PSU included | Dimensions Φ186mm×234mm
Short Description
https://ecom.elkogroup.com/Catalog/Product/1217524
Downloadable Files

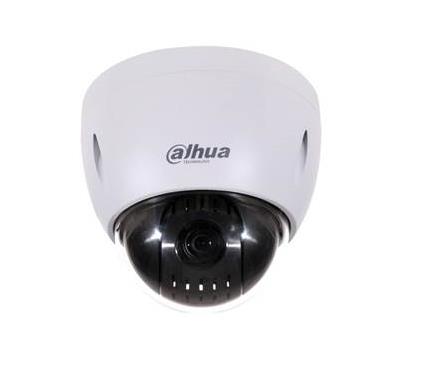

CAMERA HDCVI 1080P 12X PTZ/DOME SD42212I-HC DAHUA
| Description: HDCVI is an optimal solution for megapixel high definition application, featuring non-latent long-distance transmission at lower cost over standard RG-75 type cable. It incorporates both cameras and DVRs, and the system is star topology structured. DVR is served as a node to have an over coax P2P (Point-to-Point) transmission to camera. Cable selection is based on transmission distance: cable 75-3 and 75-5 are recommended for transmission within 500 meters, cable 75-5 and above for over 500 meters. Connector or jointing technology could be applied for connecting and the installation is exactly the same as that of conventional analog devices, which posts no special requirements either for indoor or outdoor scenarios with better anti-interference capability offered. - 1/2.8” Sony Exmor CMOS, 1080P(1920×1080) @25FPS max<br/> - Minimum illumination: Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6<br/> - True Day/Night with ICR Filter, BLC / HLC / DWDR, 3D DNR<br/> - 5.1mm~61.2mm (12x Optical zoom) (51.3° ~ 4.6°)<br/> - Pan: Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180°<br/> - Preset Speed: Pan: 300° /s; Tilt: 200° /s, Presets: 300<br/> - 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)<br/> - 1 Audio channel In, 2/1 Alarm In/Out, RS485<br/> - IP66, IK10, -10°C~+60°C outdoor/indoor use<br/> - Power: AC24V/1.5A(±10%), 10W max<br/> - 24 VAC PSU included<br/> |
| Vendor Homepage: www.dahuasecurity.com/th/products/sd42212i-hc-1265.html |
| Shipping Box Depth: 25 |
| Shipping Box Height: 25 |
| Shipping Box Weight: 3.314 |
| Shipping Box Width: 25 |
| Unit Box Width: 0.25 |
| Unit Box Length: 0.25 |
| Unit Box Height: 0.25 |
| Full Description Line: Type PTZ|Sensor size 1/2.8” Sony Exmor CMOS|Focal Length 5.1mm - 61.2mm|Min. Illumination 0.05 Lux|Effective pixels 1944(H) x 1092(V)|1xAudio-In|1xBNC|1xRS-485|2xAlarm In|1xAlarm Out|Power supply requirements AC24V/1.5A(±10%), 10W max; 24 VAC PSU included|Dimensions Φ186mm×234mm |
| Category Code: HSC |
| Dimensions: Φ186mm×234mm |
| Units per Shipping Box: 1 |
| Unit Calculated Volume: 0.01563 |
| Product Net Weight: 2.3 |
| Unit Calculated Weight: 3.31 |
| Power consumption: 10 |
| Power supply requirements: AC24V/1.5A(±10%), 10W max; 24 VAC PSU included |
| Camera design: Dome |
| Network Camera Type: PTZ |
| Pixel Resolution: 2 |
| Net camera resolution: 2 - 4MP |
| Sensor size: 1/2.8” Sony Exmor CMOS |
| Min. Illumination: 0.05 |
| IR Illumination: Yes |
| Effective pixels: 1944(H) x 1092(V) |
| Audio-In: 1 |
| BNC: 1 |
| Alarm Out: 1 |
| Alarm In: 2 |
| RS-485: 1 |
Warranty:
36 months
Specifications
Description:
HDCVI is an optimal solution for megapixel high definition application, featuring non-latent long-distance transmission at lower cost over standard RG-75 type cable. It incorporates both cameras and DVRs, and the system is star topology structured. DVR is served as a node to have an over coax P2P (Point-to-Point) transmission to camera. Cable selection is based on transmission distance: cable 75-3 and 75-5 are recommended for transmission within 500 meters, cable 75-5 and above for over 500 meters. Connector or jointing technology could be applied for connecting and the installation is exactly the same as that of conventional analog devices, which posts no special requirements either for indoor or outdoor scenarios with better anti-interference capability offered.
- 1/2.8” Sony Exmor CMOS, 1080P(1920×1080) @25FPS max<br/>
- Minimum illumination: Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6<br/>
- True Day/Night with ICR Filter, BLC / HLC / DWDR, 3D DNR<br/>
- 5.1mm~61.2mm (12x Optical zoom) (51.3° ~ 4.6°)<br/>
- Pan: Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180°<br/>
- Preset Speed: Pan: 300° /s; Tilt: 200° /s, Presets: 300<br/>
- 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)<br/>
- 1 Audio channel In, 2/1 Alarm In/Out, RS485<br/>
- IP66, IK10, -10°C~+60°C outdoor/indoor use<br/>
- Power: AC24V/1.5A(±10%), 10W max<br/>
- 24 VAC PSU included<br/>
Vendor Homepage:
www.dahuasecurity.com/th/products/sd42212i-hc-1265.html
Shipping Box Depth:
25
Shipping Box Height:
25
Shipping Box Weight:
3.314
Shipping Box Width:
25
Unit Box Width:
0.25
Unit Box Length:
0.25
Unit Box Height:
0.25
Full Description Line:
Type PTZ|Sensor size 1/2.8” Sony Exmor CMOS|Focal Length 5.1mm - 61.2mm|Min. Illumination 0.05 Lux|Effective pixels 1944(H) x 1092(V)|1xAudio-In|1xBNC|1xRS-485|2xAlarm In|1xAlarm Out|Power supply requirements AC24V/1.5A(±10%), 10W max; 24 VAC PSU included|Dimensions Φ186mm×234mm
Category Code:
HSC
Dimensions:
Φ186mm×234mm
Units per Shipping Box:
1
Unit Calculated Volume:
0.01563
Product Net Weight:
2.3
Unit Calculated Weight:
3.31
Power consumption:
10
Power supply requirements:
AC24V/1.5A(±10%), 10W max; 24 VAC PSU included
Camera design:
Dome
Network Camera Type:
PTZ
Pixel Resolution:
2
Net camera resolution:
2 - 4MP
Sensor size:
1/2.8” Sony Exmor CMOS
Focal Length:
Varifocal,
5.1mm - 61.2mm
Min. Illumination:
0.05
IR Illumination:
Yes
Effective pixels:
1944(H) x 1092(V)
Audio-In:
1
BNC:
1
Alarm Out:
1
Alarm In:
2
RS-485:
1
