Description
Operating temperature range -40°C – 55°C
Short Description
https://ecom.elkogroup.com/Catalog/Product/1215351
Downloadable Files
ENTRY PANEL MAIN UNIT HELIOS/IP FORCE W/CAM 9151102CHRW 2N
| Description: 2N® Helios IP Force is an extremely durable IP intercom that can withstand even the most demanding conditions. It provides for visitor communication monitoring and accesscontrol. Take advantage of its superior features for maximum site security.<br/> Features 1 Button & HD Camera & Keypad & 10 W Loudspeaker.<br/> <br/> Signalling protocol: SIP 2.0 (RFC - 3261)<br/> Button format: transparent buttons with white backlight and easily removable label<br/> Number of buttons:2<br/> Numeric keypad:No, card reader ready<br/> Speaker: 10W<br/> Sound pressure at 1 kHz at 1 m distance (10 W speaker):94 dB<br/> Audio Codecs:G.711, G.729, G.722, L16/16kHz<br/> Camera Resolution – HD camera:1280 x 960<br/> Viewing angle:135° (H), 109° (V)<br/> Night vision:Yes<br/> Video Codecs: H.263+, H.263, H.264, MJPEG<br/> Power supply:12V ± 15%/ 2A DC, or PoE<br/> PoE: PoE 802.3af (Class 0 - 12.95W)<br/> LAN:10/100BASE-TX with Auto-MDIX function<br/> Passive switch:NC/NO contacts, max 30 V/1 A AC/DC<br/> Active switch output:9 to 13 V DC depending on Power supply (PoE: 9 V; adapter: source voltage minus 1 V), max 700 mA<br/> Supported protocols:SIP2.0, DHCP opt. 66, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog, ONVIF<br/> RFID card reader Supported frequencies: 13.56MHz & 125 kHz<br/> Support for NFC:Yes, HCE and the 2N® Mobile Key application needed<br/> Operating temperature:-40°C – 55°C<br/> Coverage level:IP69K |
| Vendor Homepage: www.2n.cz/en_GB/products/intercoms/2n-helios-ip-force |
| Shipping Box Depth: 31.5 |
| Shipping Box Height: 15.5 |
| Shipping Box Weight: 2.01 |
| Shipping Box Width: 17 |
| Unit Box Width: 0.17 |
| Unit Box Length: 0.315 |
| Unit Box Height: 0.155 |
| Full Description Line: Operating temperature range -40°C – 55°C |
| Category Code: DEV |
| Operating temperature range: -40°C – 55°C |
| Units per Shipping Box: 1 |
| Unit Calculated Volume: 0.0083 |
| Product Net Weight: 2 |
| Unit Calculated Weight: 2.01 |
Warranty:
60 months
Specifications
Description:

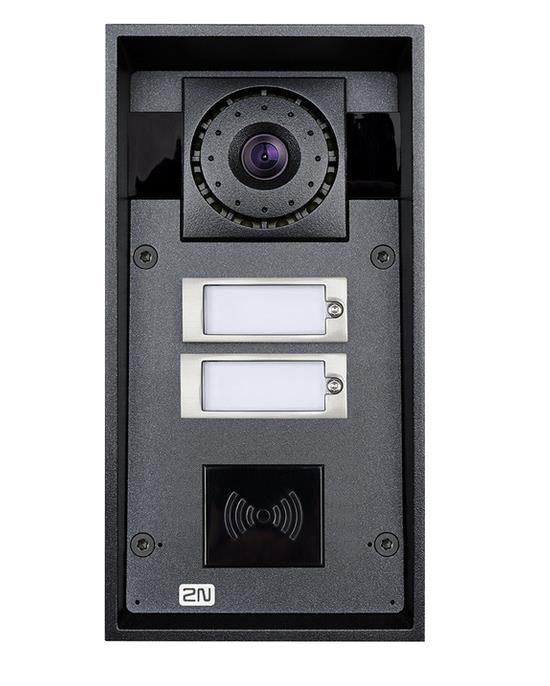

2N® Helios IP Force is an extremely durable IP intercom that can withstand even the most demanding conditions. It provides for visitor communication monitoring and accesscontrol. Take advantage of its superior features for maximum site security.<br/>
Features 1 Button & HD Camera & Keypad & 10 W Loudspeaker.<br/>
<br/>
Signalling protocol: SIP 2.0 (RFC - 3261)<br/>
Button format: transparent buttons with white backlight and easily removable label<br/>
Number of buttons:2<br/>
Numeric keypad:No, card reader ready<br/>
Speaker: 10W<br/>
Sound pressure at 1 kHz at 1 m distance (10 W speaker):94 dB<br/>
Audio Codecs:G.711, G.729, G.722, L16/16kHz<br/>
Camera Resolution – HD camera:1280 x 960<br/>
Viewing angle:135° (H), 109° (V)<br/>
Night vision:Yes<br/>
Video Codecs: H.263+, H.263, H.264, MJPEG<br/>
Power supply:12V ± 15%/ 2A DC, or PoE<br/>
PoE: PoE 802.3af (Class 0 - 12.95W)<br/>
LAN:10/100BASE-TX with Auto-MDIX function<br/>
Passive switch:NC/NO contacts, max 30 V/1 A AC/DC<br/>
Active switch output:9 to 13 V DC depending on Power supply (PoE: 9 V; adapter: source voltage minus 1 V), max 700 mA<br/>
Supported protocols:SIP2.0, DHCP opt. 66, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog, ONVIF<br/>
RFID card reader Supported frequencies: 13.56MHz & 125 kHz<br/>
Support for NFC:Yes, HCE and the 2N® Mobile Key application needed<br/>
Operating temperature:-40°C – 55°C<br/>
Coverage level:IP69K
Vendor Homepage:
www.2n.cz/en_GB/products/intercoms/2n-helios-ip-force
Shipping Box Depth:
31.5
Shipping Box Height:
15.5
Shipping Box Weight:
2.01
Shipping Box Width:
17
Unit Box Width:
0.17
Unit Box Length:
0.315
Unit Box Height:
0.155
Full Description Line:
Operating temperature range -40°C – 55°C
Category Code:
DEV
Operating temperature range:
-40°C – 55°C
Units per Shipping Box:
1
Unit Calculated Volume:
0.0083
Product Net Weight:
2
Unit Calculated Weight:
2.01
