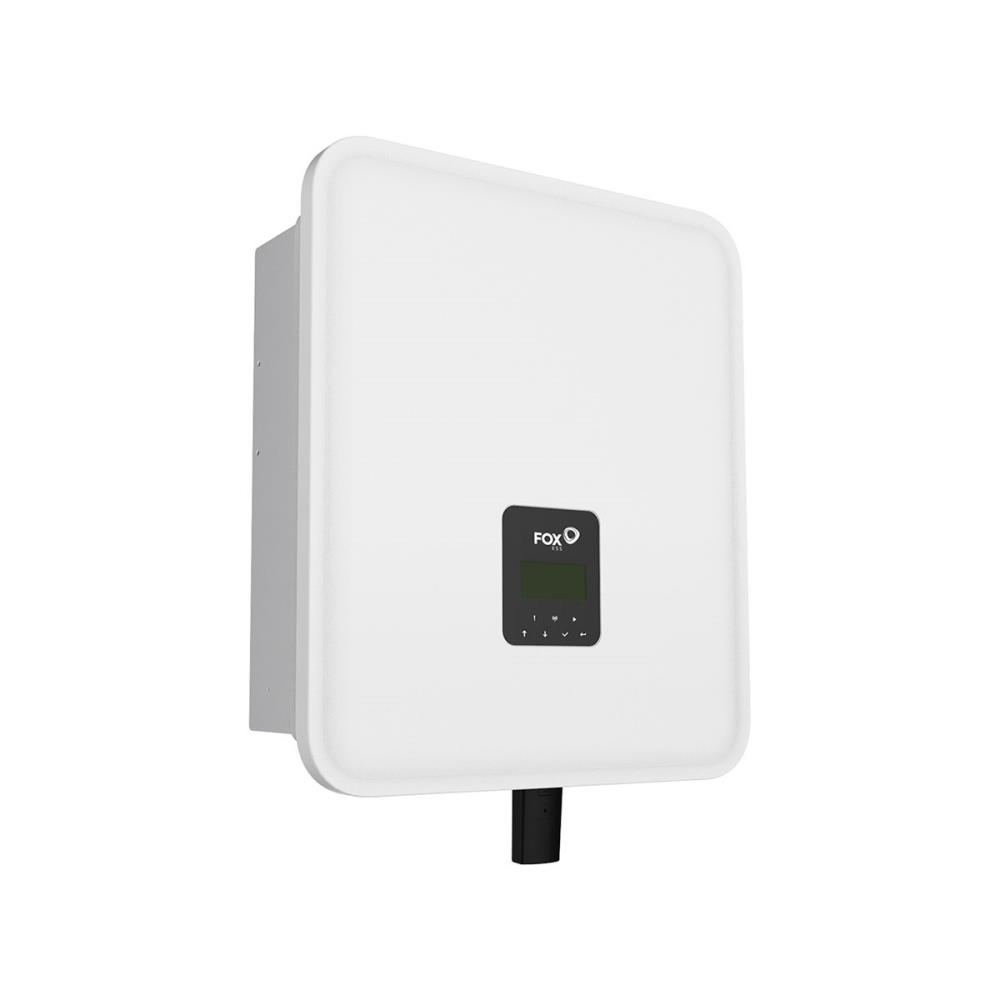

INVERTER HYBRID 3PH 12KW/2MPPT 30-137-12310-00 FOXESS

• Description H3-12.0-E<br/> 3-Phase hybrid inverter<br/> <br/> Harness the power of the sun day and night with the ground-breaking range of Hybrid & AC inverters from FOXESS.<br/> Full of advanced features and compatible with our very own range of high-voltage batteries, the hybrid range from FOXESS. It is a new class of Inverter.<br/> <br/> Easily expand your system by just add extra batteries. There are three battery series you can choose, which enables a storage capacity of up to 33.24 kWh. There are Max. 10 storage inverters can be connected in parallel to allow you enlarge the system scale base on different installation requirement.
• Vendor Homepage www.fox-ess.com/3-phase/
• Shipping Box Depth 62
• Shipping Box Height 38
• Shipping Box Weight 33.55
• Shipping Box Width 52
• Unit Box Width 0.52
• Unit Box Length 0.62
• Unit Box Height 0.38
• Full Description Line 3phase|Rated Output 12000W|AC output voltage 400V/230VAC|Max output current 17.4 (per phase)|Number of MPP trackers 2|Maximum DC input voltage 1000|Maximum DC input current 26 / 14|Maximum battery input voltage 480 V|Standby consumption 15 Watts|IP Rating IP65|Operating temperature range -25 to +60 °C|Dimensions 449x519x198mm|Weight 28 kg
• Category Code SIV
• Model H3-12.0-E
• Operating temperature range -25 to +60 °C
• Dimensions 449x519x198mm
• Units per Shipping Box 1
• Unit Calculated Volume 0.1225
• Product Net Weight 28
• Unit Calculated Weight 33.5
• Included Accessories WiFi datalogger
• IP Rating IP65
• Phase 3phase
• Standby consumption 15
• Max output current 17.4 (per phase)
• Rated output power 12000W
• AC output voltage 400V/230VAC
• Number of MPP trackers 2
• Maximum DC input voltage 1000
• PV operating voltage range 160-950
• Maximum DC input current 26 / 14
• Monitoring module WiFi, LAN, 4G, GPRS (Optional)
• Compatible batteries 180-600V, Lithium
• Maximum battery input voltage 480
• Maximum battery input current 26
