Description
Detector Type Motion | Detection technology PIR | Detecting area 12 m x 13 m, 90° | Operating temperature range -10°C...+55°C | Power supply requirements 12 V DC | Dimensions 62 x 137 x 42mm
Short Description
https://ecom.elkogroup.com/Catalog/Product/1286678
Downloadable Files

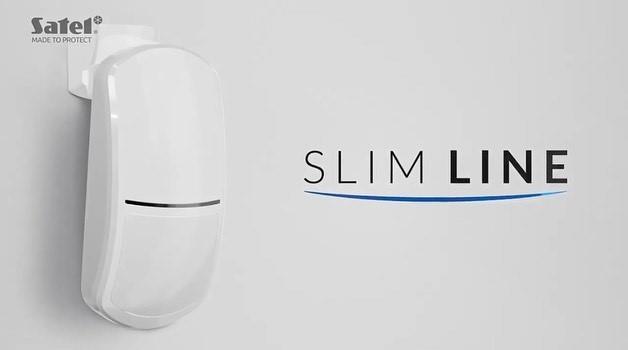

DETECTOR PIR+MW/SLIM-DUAL-PET SATEL
| Description: Elegant, slim enclosure is made of high quality plastic.<br/> Uniform appearance of all detectors installed in the premises makes it difficult for an intruder to identify the specific model used in the system because all of them look the same.<br/> <br/> compliance with EN 50131 Grade 2<br/> configuring operating parameters: potentiometers<br/> end-of-line resistors - 1.1 kO<br/> 4 available LED indicator colors<br/> pet immunity function up to 20 Kg<br/> |
| Vendor Homepage: www.satel.pl/en/produktid/1122 |
| Full Description Line: Detector Type Motion|Detection technology PIR|Detecting area 12 m x 13 m, 90°|Operating temperature range -10°C...+55°C|Power supply requirements 12 V DC|Dimensions 62 x 137 x 42mm |
| Category Code: MDE |
| Operating temperature range: -10°C...+55°C |
| Dimensions: 62 x 137 x 42mm |
| Unit Calculated Volume: 0.00063 |
| Product Net Weight: 0.101 |
| Unit Calculated Weight: 0.17 |
| Power supply requirements: 12 V DC |
| Environment: Indoor |
| Detector Type: Motion |
| Detection technology: PIR |
| Detecting area: 12 m x 13 m, 90° |
Warranty:
36 months
Specifications
Description:
Elegant, slim enclosure is made of high quality plastic.<br/>
Uniform appearance of all detectors installed in the premises makes it difficult for an intruder to identify the specific model used in the system because all of them look the same.<br/>
<br/>
compliance with EN 50131 Grade 2<br/>
configuring operating parameters: potentiometers<br/>
end-of-line resistors - 1.1 kO<br/>
4 available LED indicator colors<br/>
pet immunity function up to 20 Kg<br/>
Vendor Homepage:
www.satel.pl/en/produktid/1122
Full Description Line:
Detector Type Motion|Detection technology PIR|Detecting area 12 m x 13 m, 90°|Operating temperature range -10°C...+55°C|Power supply requirements 12 V DC|Dimensions 62 x 137 x 42mm
Category Code:
MDE
Operating temperature range:
-10°C...+55°C
Dimensions:
62 x 137 x 42mm
Unit Calculated Volume:
0.00063
Product Net Weight:
0.101
Unit Calculated Weight:
0.17
Power supply requirements:
12 V DC
Environment:
Indoor
Detector Type:
Motion
Detection technology:
PIR
Detecting area:
12 m x 13 m, 90°
