Description
Case Type 1U rack | Chipset Intel C256 | Socket LGA1200 | CPU's Xeon UP | Maximum number of CPUs 1 | 1xPCI-Express 4.0 8x | 1xPCI-Express 4.0 16x | 1xM.2 | 1x15pin D-sub | 2xUSB 2.0 | 3xUSB 3.2 | 1xCOM | 3xRJ45 | Memory type DDR4 | Frequency speed 3200/2933/2666 MHz | Memory features UDIMM/ECC | Memory slots 4 | PSU Output Power 350 Watts | 4x3.5" SATA Hot-swap | Cooling & Ventilation System 4 middle cooling fan | Software included SFT-OOB-LIC | Included Accessories CPU Heatsink
Short Description
https://ecom.elkogroup.com/Catalog/Product/1357179
Downloadable Files

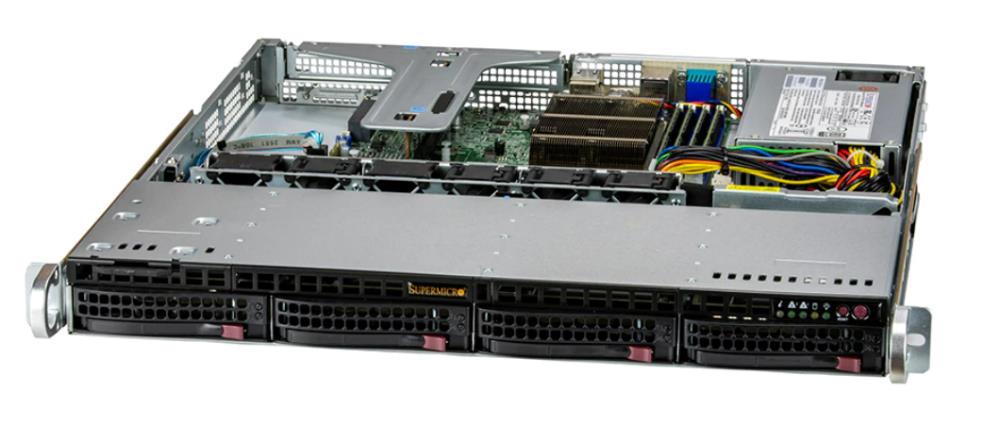

SERVER SYSTEM 1U SATA/SYS-510T-M SUPERMICRO
| Description: Key Applications- Web/Hosting Application - Email/Firewall/Print Server - General Purpose Key Features Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors<br/> 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz<br/> 1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8 (FHHL); 1 Dedicated Internal HBA slot<br/> Intel® Ethernet Controller i210 2x 1GbE RJ45<br/> 4x Hot-swap 3.5" SATA3 drive bays, SAS3 w/ additional SAS controller card; Onboard 1x NVMe M.2<br/> Single Platinum 350W Power Supply<br/> |
| Vendor Homepage: www.supermicro.com/en/products/system/up/1u/sys-510t-m |
| RJ45: 3 |
| Shipping Box Depth: 75.5 |
| Shipping Box Height: 21 |
| Shipping Box Weight: 14.9 |
| Shipping Box Width: 60 |
| Unit Box Width: 0.6 |
| Unit Box Length: 0.75 |
| Unit Box Height: 0.205 |
| Full Description Line: Case Type 1U rack|Chipset Intel C256|Socket LGA1200|CPU's Xeon UP|Maximum number of CPUs 1|1xPCI-Express 4.0 8x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|2xUSB 2.0|3xUSB 3.2|1xCOM|3xRJ45|Memory type DDR4|Frequency speed 3200/2933/2666 MHz|Memory features UDIMM/ECC|Memory slots 4|PSU Output Power 350 Watts|4x3.5" SATA Hot-swap|Cooling & Ventilation System 4 middle cooling fan|Software included SFT-OOB-LIC|Included Accessories CPU Heatsink |
| Category Code: SYS |
| Dimensions: 43 x 437 x 507 mm |
| Units per Shipping Box: 1 |
| Unit Calculated Volume: 0.09513 |
| Product Net Weight: 8 |
| Unit Calculated Weight: 13.8 |
| USB 2.0: 2 |
| Included Accessories: CPU Heatsink |
| USB 3.2: 3 |
| Socket: LGA1200 |
| Memory type: DDR4 |
| Frequency speed: 2666/2933/3200 |
| PSU Output Power: 350 |
| Software included: SFT-OOB-LIC |
| 15pin D-sub: 1 |
| Memory features: ECC/UDIMM |
| 3.5" SATA Hot-swap: 4 |
| Case Type: 1U rack |
| Optional Accessories: 2x System fans for AOC FAN-0154L4 |
| M.2: 1 |
| Cooling & Ventilation System: 4 middle cooling fan |
| Chipset: Intel C256 |
| Memory slots: 4 |
| PCI-Express 4.0 16x: 1 |
| COM: 1 |
| CPU's: Xeon UP |
| Maximum number of CPUs: 1 |
| PCI-Express 4.0 8x: 1 |
Warranty:
12 months
Specifications
Description:
Key Applications- Web/Hosting Application
- Email/Firewall/Print Server
- General Purpose
Key Features
Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors<br/>
4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz<br/>
1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8 (FHHL);
1 Dedicated Internal HBA slot<br/>
Intel® Ethernet Controller i210 2x 1GbE RJ45<br/>
4x Hot-swap 3.5" SATA3 drive bays, SAS3 w/ additional SAS controller card; Onboard 1x NVMe M.2<br/>
Single Platinum 350W Power Supply<br/>
Vendor Homepage:
www.supermicro.com/en/products/system/up/1u/sys-510t-m
RJ45:
3
Shipping Box Depth:
75.5
Shipping Box Height:
21
Shipping Box Weight:
14.9
Shipping Box Width:
60
Unit Box Width:
0.6
Unit Box Length:
0.75
Unit Box Height:
0.205
Full Description Line:
Case Type 1U rack|Chipset Intel C256|Socket LGA1200|CPU's Xeon UP|Maximum number of CPUs 1|1xPCI-Express 4.0 8x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|2xUSB 2.0|3xUSB 3.2|1xCOM|3xRJ45|Memory type DDR4|Frequency speed 3200/2933/2666 MHz|Memory features UDIMM/ECC|Memory slots 4|PSU Output Power 350 Watts|4x3.5" SATA Hot-swap|Cooling & Ventilation System 4 middle cooling fan|Software included SFT-OOB-LIC|Included Accessories CPU Heatsink
Category Code:
SYS
Dimensions:
43 x 437 x 507 mm
Units per Shipping Box:
1
Unit Calculated Volume:
0.09513
Product Net Weight:
8
Unit Calculated Weight:
13.8
USB 2.0:
2
Included Accessories:
CPU Heatsink
USB 3.2:
3
Socket:
LGA1200
Memory type:
DDR4
Frequency speed:
2666/2933/3200
PSU Output Power:
350
Software included:
SFT-OOB-LIC
15pin D-sub:
1
Memory features:
ECC/UDIMM
3.5" SATA Hot-swap:
4
Case Type:
1U rack
Optional Accessories:
2x System fans for AOC FAN-0154L4
M.2:
1
Cooling & Ventilation System:
4 middle cooling fan
Chipset:
Intel C256
Memory slots:
4
PCI-Express 4.0 16x:
1
COM:
1
CPU's:
Xeon UP
Maximum number of CPUs:
1
PCI-Express 4.0 8x:
1
