Description
AMD X870 | SAM5 | ATX | DDR5 | 8200/8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/5000/4800 MHz | Memory slots 4 | 2xPCI-Express 3.0 1x | 1xPCI-Express 4.0 4x | 1xPCI-Express 5.0 16x | 3xM.2 | 1xHDMI | 4xUSB 2.0 | 3xUSB 3.2 | 2xUSB-C | 1xRJ45 | 3xAudio port | USB-C | USB 2.0 | USB 3.2 | Bluetooth | WiFi | Video Depending on CPU | Audio Realtek ALC897 | LAN 5 Gigabit | RAID SATA 0, 1 | TPM Header
Short Description
https://ecom.elkogroup.com/Catalog/Product/1422893
Downloadable Files
Mainboard|MSI|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|4xUSB 2.0|3xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|PROX870-PWIFI
| Description: PRO X870-P WIFI - Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors<br/> - Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)<br/> - Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material<br/> - Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr II are built for high performance system and non-stop experience<br/> - EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna<br/> - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2<br/> - Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission<br/> - Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience<br/> |
| Vendor Homepage: www.msi.com/Motherboard/PRO-X870-P-WIFI |
| RJ45: 1 |
| Shipping Box Depth: 38 |
| Shipping Box Height: 37 |
| Shipping Box Weight: 10.35 |
| Shipping Box Width: 28.5 |
| Unit Box Width: 0.27 |
| Unit Box Length: 0.345 |
| Unit Box Height: 0.07 |
| Full Description Line: AMD X870|SAM5|ATX|DDR5|8200/8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|4xUSB 2.0|3xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC897|LAN 5 Gigabit|RAID SATA 0, 1|TPM Header |
| Category Code: MBA |
| Model: PRO X870-P WIFI |
| Units per Shipping Box: 5 |
| Unit Calculated Volume: 0.008014 |
| Product Net Weight: 1.5 |
| Unit Calculated Weight: 2.07 |
| Form Factor: ATX |
| Socket: SAM5 |
| Memory type: DDR5 |
| Frequency speed: 4800/5000/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000/8200 |
| Bluetooth: Yes |
| HDMI: 1 |
| Integrated LAN: 5 Gigabit |
| Audio port: 3 |
| WiFi: Yes |
| M.2: 3 |
| Chipset: AMD X870 |
| Memory slots: 4 |
| Integrated video: Depending on CPU |
| Integrated audio: Realtek ALC897 |
| RAID: SATA 0, 1 |
| TPM: Header |
| PCI-Express 3.0 1x: 2 |
| PCI-Express 5.0 16x: 1 |
| PCI-Express 4.0 4x: 1 |
Warranty:
36 months
Specifications
Description:

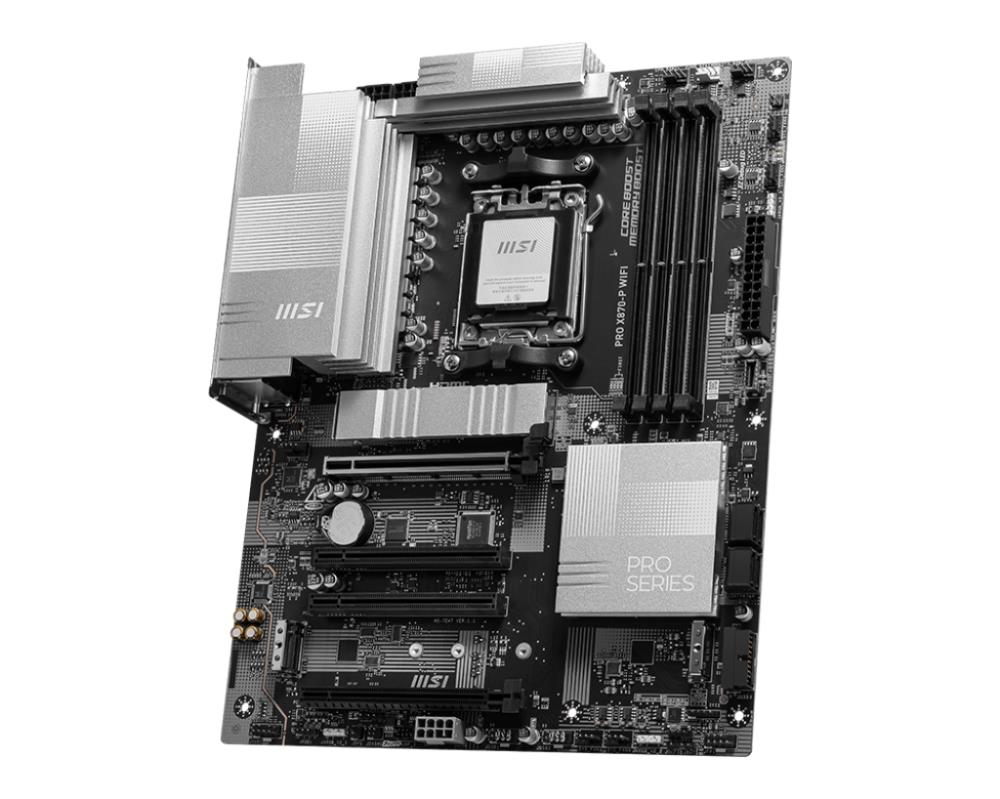

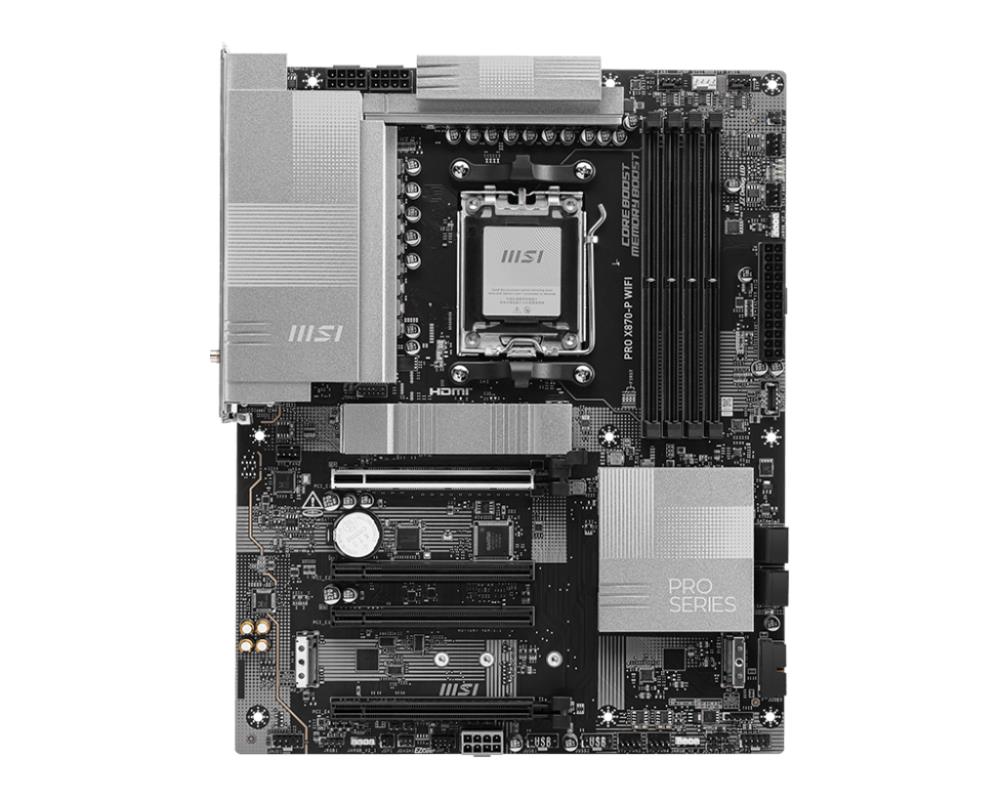

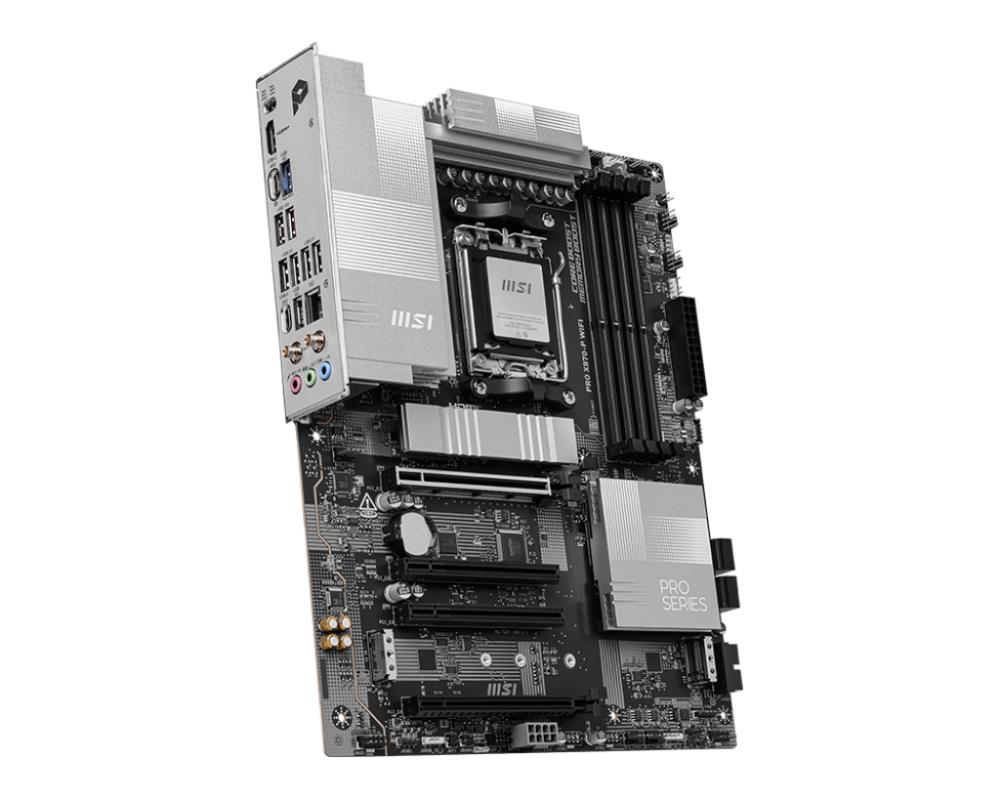

PRO X870-P WIFI
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors<br/>
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)<br/>
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material<br/>
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr II are built for high performance system and non-stop experience<br/>
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna<br/>
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2<br/>
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission<br/>
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience<br/>
Vendor Homepage:
www.msi.com/Motherboard/PRO-X870-P-WIFI
RJ45:
1
Shipping Box Depth:
38
Shipping Box Height:
37
Shipping Box Weight:
10.35
Shipping Box Width:
28.5
Unit Box Width:
0.27
Unit Box Length:
0.345
Unit Box Height:
0.07
Full Description Line:
AMD X870|SAM5|ATX|DDR5|8200/8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|4xUSB 2.0|3xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC897|LAN 5 Gigabit|RAID SATA 0, 1|TPM Header
Category Code:
MBA
Model:
PRO X870-P WIFI
Units per Shipping Box:
5
Unit Calculated Volume:
0.008014
Product Net Weight:
1.5
Unit Calculated Weight:
2.07
USB 2.0:
Yes,
4
Form Factor:
ATX
USB 3.2:
Yes,
3
Socket:
SAM5
USB-C:
Yes,
2
Memory type:
DDR5
Frequency speed:
4800/5000/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000/8200
Bluetooth:
Yes
HDMI:
1
Integrated LAN:
5 Gigabit
Audio port:
3
WiFi:
Yes
M.2:
3
Chipset:
AMD X870
Memory slots:
4
Integrated video:
Depending on CPU
Integrated audio:
Realtek ALC897
RAID:
SATA 0, 1
TPM:
Header
PCI-Express 3.0 1x:
2
PCI-Express 5.0 16x:
1
PCI-Express 4.0 4x:
1
