Description
Colour White | Unit Brutto Volume 0.0006413 cubm
Short Description
https://ecom.elkogroup.com/Catalog/Product/1303945
Downloadable Files

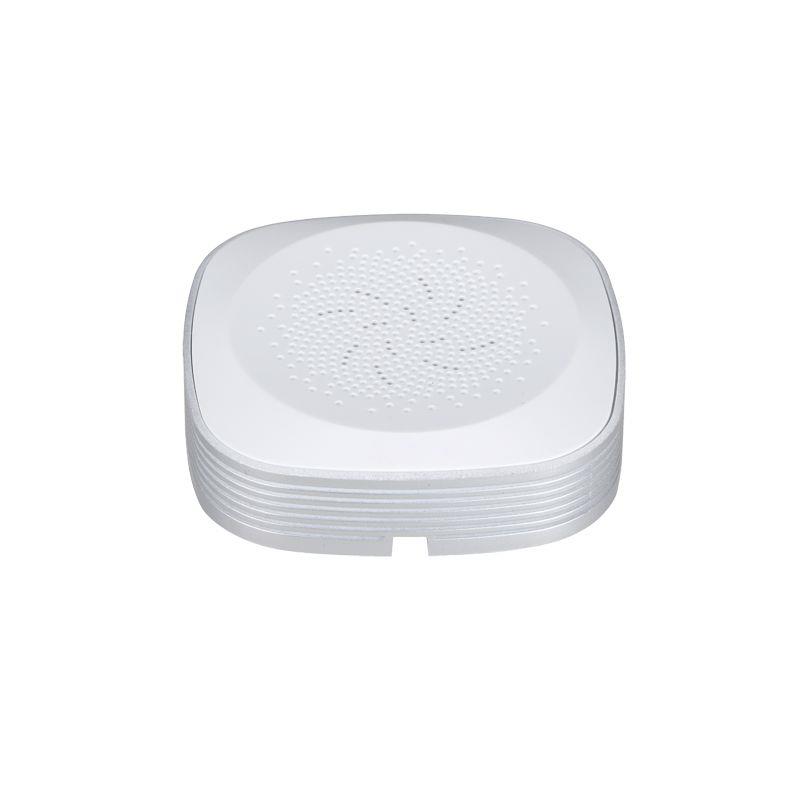

AUDIO MICROPHONE PICKUP MODULE/HAP201 DAHUA
| Description: ·CPU built-in audio sampling module, low interference from the hardware circuit, audio signal has low noise<br/> ·Smart audio crack protection, auto low microphone sensitivity to meet the requirements of the high volume to reduce audio crack.<br/> ·Adopts wide dynamic range processing technology for the valid audio signal, balances the processing of high audio and low audio.<br/> ·High-sensitivity microphone, omni-directional pickup, clear audio, high anti-inference capability<br/> ·Noise reduction via the algorithm to enhance signal definition.<br/> ·Auto gain and compensate the human voice frequency. Exaggerates the human voice in environment of lots of noise and can present the clear voice.<br/> ·It can effectively reduce the indoor reverberation resulting from the reflection via the wall, ceiling.<br/> ·It supports screaming control function and can greatly enhance the speaker effect when the pickup and the loud speaker are in the same environment.<br/> ·Built-in high-speed CPU, real-time processing audio signal, low latency.<br/> ·Built-in lighting protection, power two-polarity misconnection protection, static electricity protection.<br/> <br/> Pickup Range 1~150 m2<br/> Sensitivity -38dB<br/> Frequency response 20Hz~20kHz<br/> Omni-directional<br/> SNR: 85 dB (1 m 40 dB audio source SPL)<br/> Dynamic range 106dB (1KHz at Max dB SPL)<br/> Output signal amplitude 2.5Vpp/-25dB<br/> Electret condenser microphone<br/> Working voltage DC 12V (9~18V)<br/> Working current 60mA<br/> Working temperature -20ºC~+60ºC<br/> Dimension 79.6mmx79.6mmx21.5mm / 0.06kg<br/> |
| Vendor Homepage: www.dahuasecurity.com |
| Colour: White |
| Shipping Box Depth: 12.5 |
| Shipping Box Height: 5.4 |
| Shipping Box Weight: 0.106 |
| Shipping Box Width: 9.5 |
| Unit Box Width: 0.095 |
| Unit Box Length: 0.125 |
| Unit Box Height: 0.054 |
| Full Description Line: Colour White|Unit Brutto Volume 0.0006413 cubm |
| Category Code: CAC |
| Dimensions: 79.6mmx79.6mmx21.5mm |
| Units per Shipping Box: 1 |
| Unit Calculated Volume: 0.0006413 |
| Product Net Weight: 0.06 |
| Unit Calculated Weight: 0.106 |
Warranty:
36 months
Specifications
Description:
·CPU built-in audio sampling module, low interference from the hardware circuit, audio signal has low noise<br/>
·Smart audio crack protection, auto low microphone sensitivity to meet the requirements of the high volume to reduce audio crack.<br/>
·Adopts wide dynamic range processing technology for the valid audio signal, balances the processing of high audio and low audio.<br/>
·High-sensitivity microphone, omni-directional pickup, clear audio, high anti-inference capability<br/>
·Noise reduction via the algorithm to enhance signal definition.<br/>
·Auto gain and compensate the human voice frequency. Exaggerates the human voice in environment of lots of noise and can present the clear voice.<br/>
·It can effectively reduce the indoor reverberation resulting from the reflection via the wall, ceiling.<br/>
·It supports screaming control function and can greatly enhance the speaker effect when the pickup and the loud speaker are in the same environment.<br/>
·Built-in high-speed CPU, real-time processing audio signal, low latency.<br/>
·Built-in lighting protection, power two-polarity misconnection protection, static electricity protection.<br/>
<br/>
Pickup Range 1~150 m2<br/>
Sensitivity -38dB<br/>
Frequency response 20Hz~20kHz<br/>
Omni-directional<br/>
SNR: 85 dB (1 m 40 dB audio source SPL)<br/>
Dynamic range 106dB (1KHz at Max dB SPL)<br/>
Output signal amplitude 2.5Vpp/-25dB<br/>
Electret condenser microphone<br/>
Working voltage DC 12V (9~18V)<br/>
Working current 60mA<br/>
Working temperature -20ºC~+60ºC<br/>
Dimension 79.6mmx79.6mmx21.5mm / 0.06kg<br/>
Vendor Homepage:
www.dahuasecurity.com
Colour:
White
Shipping Box Depth:
12.5
Shipping Box Height:
5.4
Shipping Box Weight:
0.106
Shipping Box Width:
9.5
Unit Box Width:
0.095
Unit Box Length:
0.125
Unit Box Height:
0.054
Full Description Line:
Colour White|Unit Brutto Volume 0.0006413 cubm
Category Code:
CAC
Dimensions:
79.6mmx79.6mmx21.5mm
Units per Shipping Box:
1
Unit Calculated Volume:
0.0006413
Product Net Weight:
0.06
Unit Calculated Weight:
0.106
