Description
Channels 4 | Desktop/pedestal | Integrated LAN 10/100 | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 12 VDC, 1.5 A | Dim. 260 mm × 232.7 mm × 47.6 mm | Temp. range –10 °C to +55 °C | Colour Black
Short Description
https://ecom.elkogroup.com/Catalog/Product/1383347
Downloadable Files

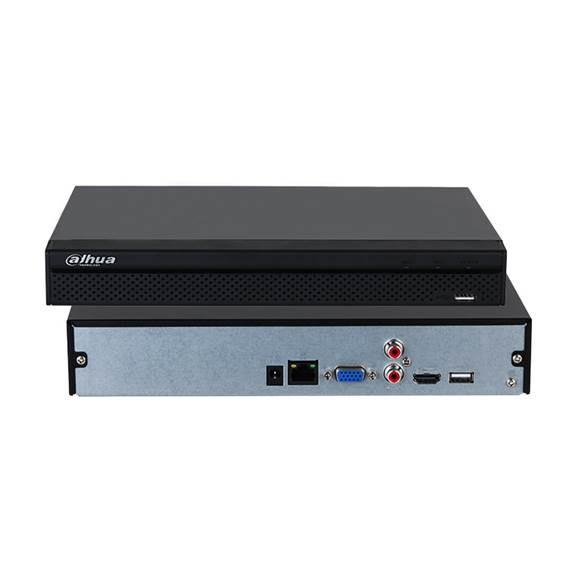

NET VIDEO RECORDER 4CH/NVR2104HS-S3 DAHUA
| Description: - 4 IP channel max, up to 12 MP resolution<br/> - 80 Mbps record rate, Smart H.265; H.265; Smart H.264; H.264<br/> - VGA/HDMI up to 4K output, 1-channel 12MP @ 30 fps; 1-channel 8MP@30 fps; 2-channel 5MP @ 30 fps; 3-channel 4MP @ 30 fps; 6-channel 1080p @ 30 fps<br/> - 1 SATA port, up to 16 TB 3.5” HDD, 10/100M LAN<br/> - No front panel control, no Alarm I/O, 2 USB, 1/1 Audio I/O<br/> - Compact 1U case, mouse included<br/> - ONVIF (profile T/S/G); CGI; SDK<br/> - Perimeter protection; SMD Plus<br/> - Other brands IP cameras supported<br/> - Free IP monitoring software available<br/> |
| Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/Lite-Series/NVR2-S3-Series/1HDD/NVR2104HS-S3 |
| RJ45: 1 |
| Colour: Black |
| Shipping Box Depth: 33 |
| Shipping Box Height: 32 |
| Shipping Box Weight: 1.394 |
| Shipping Box Width: 9 |
| Unit Box Width: 0.09 |
| Unit Box Length: 0.33 |
| Unit Box Height: 0.32 |
| Full Description Line: Channels 4|Desktop/pedestal|Integrated LAN 10/100|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Dim. 260 mm × 232.7 mm × 47.6 mm|Temp. range –10 °C to +55 °C|Colour Black |
| Category Code: NVR |
| Model: NVR2104HS-S3 |
| Operating temperature range: –10 °C to +55 °C |
| Dimensions: 260 mm × 232.7 mm × 47.6 mm |
| Units per Shipping Box: 1 |
| Unit Calculated Volume: 0.009504 |
| Product Net Weight: 0.81 |
| Unit Calculated Weight: 1.39 |
| USB 2.0: 2 |
| Power supply requirements: 12 VDC, 1.5 A |
| Desktop/pedestal: Yes |
| Number of Channels: 4 |
| 15pin D-sub: 1 |
| HDMI: 1 |
| Audio-In: 1 |
| Audio-Out: 1 |
| Integrated LAN: 10/100 |
Warranty:
36 months
Specifications
Description:
- 4 IP channel max, up to 12 MP resolution<br/>
- 80 Mbps record rate, Smart H.265; H.265; Smart H.264; H.264<br/>
- VGA/HDMI up to 4K output, 1-channel 12MP @ 30 fps; 1-channel 8MP@30 fps; 2-channel 5MP @ 30 fps; 3-channel 4MP @ 30 fps; 6-channel 1080p @ 30 fps<br/>
- 1 SATA port, up to 16 TB 3.5” HDD, 10/100M LAN<br/>
- No front panel control, no Alarm I/O, 2 USB, 1/1 Audio I/O<br/>
- Compact 1U case, mouse included<br/>
- ONVIF (profile T/S/G); CGI; SDK<br/>
- Perimeter protection; SMD Plus<br/>
- Other brands IP cameras supported<br/>
- Free IP monitoring software available<br/>
Vendor Homepage:
www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/Lite-Series/NVR2-S3-Series/1HDD/NVR2104HS-S3
RJ45:
1
Colour:
Black
Shipping Box Depth:
33
Shipping Box Height:
32
Shipping Box Weight:
1.394
Shipping Box Width:
9
Unit Box Width:
0.09
Unit Box Length:
0.33
Unit Box Height:
0.32
Full Description Line:
Channels 4|Desktop/pedestal|Integrated LAN 10/100|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Dim. 260 mm × 232.7 mm × 47.6 mm|Temp. range –10 °C to +55 °C|Colour Black
Category Code:
NVR
Model:
NVR2104HS-S3
Operating temperature range:
–10 °C to +55 °C
Dimensions:
260 mm × 232.7 mm × 47.6 mm
Units per Shipping Box:
1
Unit Calculated Volume:
0.009504
Product Net Weight:
0.81
Unit Calculated Weight:
1.39
USB 2.0:
2
Power supply requirements:
12 VDC, 1.5 A
Desktop/pedestal:
Yes
Number of Channels:
4
15pin D-sub:
1
HDMI:
1
Audio-In:
1
Audio-Out:
1
Integrated LAN:
10/100
