Description
Type Fixed Dome | Pixel Resolution 5 Mega Pixel | Focal Length 4mm | IR Illumination | Microphone Built-in | 1xMicroSD Card Slot | Power options PoE/12V | Power supply requirements 12V 1A, PoE Standard 802.3at | Operating temperature range −25 °C to +40 °C | Included Accessories Installation template;Installation kit;Quick start guide | Colour Black | Dimensions 113 × 60 mm
Short Description
https://ecom.elkogroup.com/Catalog/Product/1406778
Downloadable Files

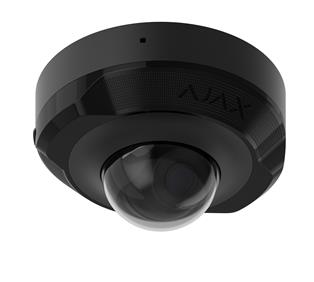

NET CAMERA 5MP DOMECAM MINI/4MM BLACK 76021 AJAX
| Description: Wired security IP camera with up to 2880 × 1620 px resolution and 75° to 85° viewing angle, Lens: 4 mm, Frame rate 25 FPS, JetSparrow, microSD, H.265, H.264, WDR, Motion detection, Object detection, Smart IR illumination up to 30 m,Visual verification of Ajax alarms, Microphone, Power supply 12V 1A, PoE Standard 802.3at |
| Vendor Homepage: ajax.systems/products/specs/domecam-mini-5-mp-4-mm/ |
| Colour: Black |
| Full Description Line: Type Fixed Dome|Pixel Resolution 5 Mega Pixel|Focal Length 4mm|IR Illumination|Microphone Built-in|1xMicroSD Card Slot|Power options PoE/12V|Power supply requirements 12V 1A, PoE Standard 802.3at|Operating temperature range −25 °C to +40 °C|Included Accessories Installation template;Installation kit;Quick start guide|Colour Black|Dimensions 113 × 60 mm |
| Category Code: FNC |
| Model: DomeCam Mini (5 Mp/4 mm) |
| Operating temperature range: −25 °C to +40 °C |
| Dimensions: 113 × 60 mm |
| Units per Shipping Box: 1 |
| Unit Calculated Volume: 0.002254 |
| Product Net Weight: 0.36 |
| Unit Calculated Weight: 0.67 |
| Included Accessories: Installation template; Installation kit; Quick start guide |
| Power consumption: 7.5 |
| Power supply requirements: 12V 1A, PoE Standard 802.3at |
| Camera design: Dome |
| Network Camera Type: Fixed Dome |
| Pixel Resolution: 5 |
| Focal Length: 4mm |
| IR Illumination: Yes |
| Microphone: Built-in |
| Power options: 12V/PoE |
| MicroSD Card Slot: 1 |
Warranty:
24 months
Specifications
Description:
Wired security IP camera with up to 2880 × 1620 px resolution and 75° to 85° viewing angle, Lens: 4 mm, Frame rate 25 FPS, JetSparrow, microSD, H.265, H.264, WDR, Motion detection, Object detection, Smart IR illumination up to 30 m,Visual verification of Ajax alarms, Microphone, Power supply 12V 1A, PoE Standard 802.3at
Vendor Homepage:
ajax.systems/products/specs/domecam-mini-5-mp-4-mm/
Colour:
Black
Full Description Line:
Type Fixed Dome|Pixel Resolution 5 Mega Pixel|Focal Length 4mm|IR Illumination|Microphone Built-in|1xMicroSD Card Slot|Power options PoE/12V|Power supply requirements 12V 1A, PoE Standard 802.3at|Operating temperature range −25 °C to +40 °C|Included Accessories Installation template;Installation kit;Quick start guide|Colour Black|Dimensions 113 × 60 mm
Category Code:
FNC
Model:
DomeCam Mini (5 Mp/4 mm)
Operating temperature range:
−25 °C to +40 °C
Dimensions:
113 × 60 mm
Units per Shipping Box:
1
Unit Calculated Volume:
0.002254
Product Net Weight:
0.36
Unit Calculated Weight:
0.67
Included Accessories:
Installation template;
Installation kit;
Quick start guide
Power consumption:
7.5
Power supply requirements:
12V 1A, PoE Standard 802.3at
Camera design:
Dome
Network Camera Type:
Fixed Dome
Pixel Resolution:
5
Focal Length:
4mm
IR Illumination:
Yes
Microphone:
Built-in
Power options:
12V/PoE
MicroSD Card Slot:
1
